Invalid partition table after 17 core install

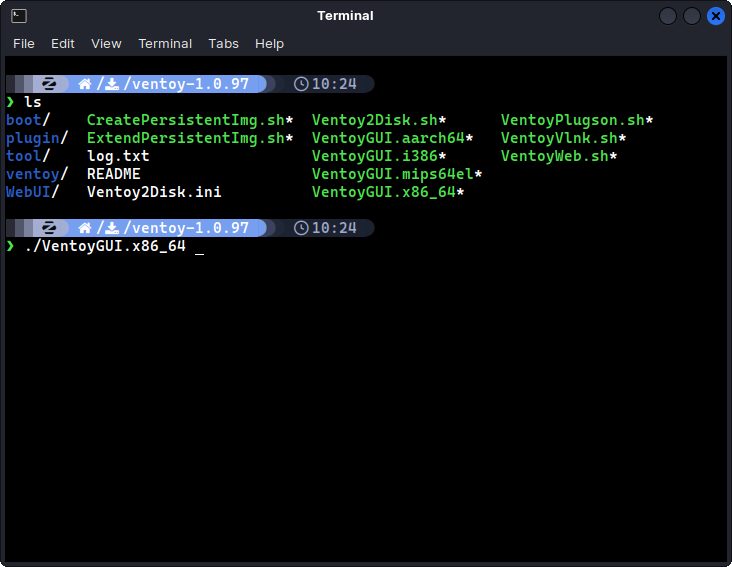

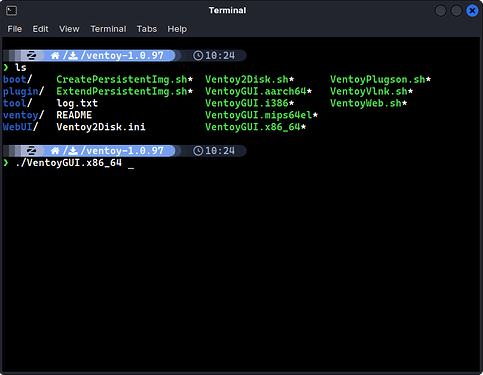

If you look inside the Ventoy folder there is a file named VentoyGUI.x86_64


To run this file just type:

./VentoyGUI.x86_64

It will open Ventoy application and you won't need the Browser to open it anymore.

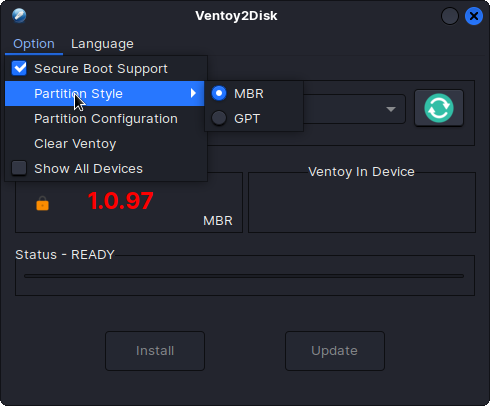

Then on the top left side just below the Ventoy logo you will find Option.
From here you can choose between MBR and GPT
Screenshot_2024-04-14_10-25-53

Keep all other options default and click on Install. When it's done rest of the process will be same as mentioned in the blog.

3 Likes

I did as you suggested and I was able to create bootable Zorin 17.1 Core USB. So I installed it on my Dell Latitiude e5430 and - - - it did the same thing! "Invalid partition table!". I know I created it for MBR, I double checked.

I have come to the conclusion that Zorin 17 is inherently set up for GPT, so it doesn't matter what program I use to create a bootable flash drive.

This bothers me because Zorin and other Linux systems like to advertise they will run on older hardware. My system is a few years old but has plenty of horsepower: i5 processor, 4 cores and 8 Gb of RAM. Not too shabby.

So I only see 3 options:

  1. Live with it as is
  2. Install an older version of Zorin (16? or Zorin Lite?), but I don't know if they will support MBR, or even try another distro like Linux Mint
  3. Dell says there is an update for the BIOS on my machine, I could flash the BIOS and see if that makes a difference, but I don't think it will.

A 4th option would be if one of you guys comes up with another work around.

Any thoughts on what I should do?

I really appreciate everyone's help. By the way, Ponce-De-Leon I tried installing Rufas, it wouldn't let install anything later than 3.2, and after I did I couldn't get it to work. This was on my desktop machine running Zorin 16.3.

Now that's cool :sunglasses:

Yes do this for sure - BIOS updates are most always a good thing :smirk:

Try that, you may need to place the file on a USB and perform the flashing from within BIOS. I know a lot of the Dell stuff likes a Windows system to 'install' the BIOS flash files, then reboot and grab it from the HDD/SSD locally. You can do this with a USB most of the time - we'll just have to see..

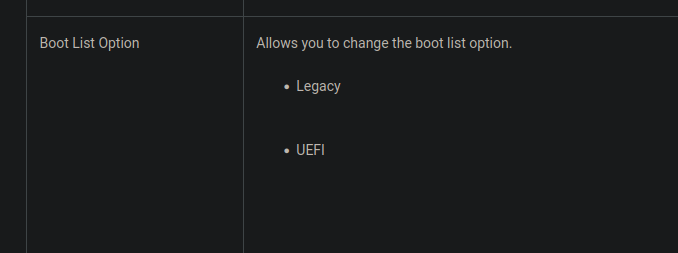

Were you able to get into your BIOS by chance? See if this helps - Dell and many others usually are F2 to get into BIOS; and this model looks different than the one you have but, should be the same:

In the BIOS settings - take a look for anything relating to Legacy / CSM options, if available have these disabled. Same for Secure Boot to install; you can set this up later if need be but, definitely disabled for install purposes.. Also. if you see any RAID or disk options have that set to AHCI; RAID doesn't really work OOB with most distros.

(edit) And I definitely forgot to ask: When you're installing, are you also downloading and installing updates with the OS install? That.. has never worked for me lol .. If you're doing that, give it one more go without the updates during the OS install.

2 Likes

In that case I will suggest Switch to UEFI from Legacy.

From your given Device's model I found that it supports UEFI

And it's recommended to update your BIOS if updates are available.

Then you can install Zorin in UEFI & GPT partioning. I hope this will fix the issue. If you try this let us know the results.

Do You maybe have the Possibility to make it on a Friend's PC who has Windows?

SUCCESS! SUCCESS! SUCCESS!
You were correct, I used F2 and got into the menu. I changed it to UEFI from Legacy in the Boot Sequence menu option.

Unlike the video that was posted by PlumpKibbles - at .50 when he changes it to UEFI the boot sequence above it just "disappears". When I did it the boot sequence changes from a list of HDD, USB etc to just "UEFI Hard Drive".

So I thought well that won't allow me to boot from the USB. But I was able to check the box next to it to in effect turn it off.

Then, under Secure Boot it says Disabled and the Legacy Option ROMs is off. So, hoping that would mean I could still select USB to boot from when I restarted and pressed F12 and selected USB.

That worked. When I was done installing I restarted and it no longer said Invalid Partition Table.

However it still restricts me to only 256 Gb of HD for Zorin. I have a 512 GB drive. This also happened when I had the Invalid partition table message. When I use the Disk utility it says I only have 2 partitions instead of 3 (which I had originally - see image in my previous post). I assume the first is for the Boot and the the 2nd is for Zorin, but it is only 256. What am I missing?

1 Like

Glad it worked :raised_hands:

Was the 512GB drive mounted?

Open File manager > Other locations > Check if it's showing there or not

If not then share the output of:

lsblk -f

Files when I go to other locations just shows Computer 219.4 Gb / 244.5 Gb available.

lsblk -f shows:
sda
sda1
vfat FAT32 504.9 available 1% /boot/efi
sda2
ext4 1.0 204.3 available 5% /

I also ran fdisk -l - Here's what I got:

/dev/sda1 512 type EFI system
/dev/sda2 232.46 type Linux filesystem

I have to go out for an appointment today. I will check this when I get back. Again I really appreciate everyone's help.

This is a different problem so start a new thread by mentioning about the issue.

Your 512gb drive is not showing at all make sure it's properly connected with the device.

In the new thread you can attach the output of:

sudo lshw -C Storage

New thread started. "Zorin 17 install only using 256Gb of HD space".
