Hi!
I have a problem with internal audio not working on Zorin OS 17 (based on Ubuntu 22.04, kernel 6.8).
Everything works perfectly on Windows, including built-in speakers and microphone. But in Linux, I get no audio output nor mic input.
Relevant hardware info:
*Laptop: EXO smart xl4
- Sound card:
HDA Intel HDMI
(only for HDMI output)
- Audio DSP is enabled in BIOS
- Internal codec detected: Everest Semi ES8336
What I’ve tried with no success:
- Installed
sof-firmware
and firmware-sof-signed
- Kernel boot parameters:
snd-intel-dspcfg.dsp_driver=1
snd-intel-dspcfg.dsp_driver=3
- Loaded modules:
snd-sof-pci
, snd-hda-intel
arecord -l
shows no capture device
pactl list sources short
only shows auto_null.monitor
journalctl
logs errors like:
failed to activate item: Object activation aborted: proxy destroyed
in WirePlumber
Has anyone gotten this codec working under Linux?
Should I try a newer kernel or different driver options?
Any help would be much appreciated!
What is your terminal output for
aplay -l
and
cat /proc/asound/modules
The first one is
**** Lista de PLAYBACK dispositivos hardware ****
tarjeta 0: HDMI [HDA Intel HDMI], dispositivo 3: HDMI 0 [HDMI 0]
Subdispositivos: 1/1
Subdispositivo #0: subdevice #0
tarjeta 0: HDMI [HDA Intel HDMI], dispositivo 7: HDMI 1 [HDMI 1]
Subdispositivos: 1/1
Subdispositivo #0: subdevice #0
tarjeta 0: HDMI [HDA Intel HDMI], dispositivo 8: HDMI 2 [HDMI 2]
Subdispositivos: 1/1
Subdispositivo #0: subdevice #0
the other one
0 snd_hda_intel
Can you install pavucontrol and launch it:
sudo apt install pavucontrol
pavucontrol
Then in your output tab, ensure that HDMI is listed as enabled?
1 Like
Besides pavucontrol: Do You have installed other Codecs, too? When You go in the Software Store, scroll down to the End, you see a Button called ''Codecs''. Click on it and You get an Overview with installable Codecs.
Then You have the restricted Codecs. You can install it with sudo apt install ubuntu-restricted-extras
but don't wonder. During the Installation will appear a Licence Aggreement Window. This is because this Package is a Bundle and includes besides codecs Microsoft Fonts, too.
Then You could install the VLC Media Player to get Codecs to this, too. And ffmpeg. Including the ubuntu-restricted-extras the Command is:
sudo apt install ubuntu-restricted-extras vlc ffmpeg
I got pavucontrol installed already, in the output tab says that there's not available, then in the setting tabs is this, all is unavailable
Thank you! Yes, I installed the ubuntu-restricted-extras
, VLC, and ffmpeg using the command you provided. I also accepted the Microsoft license agreement during the installation.
Unfortunately, my internal microphone and speaker is still not detected. Only the HDMI outputs show up in aplay -l
, and arecord -l
shows no capture devices at all.
Do you have any other suggestions? I appreciate your help!
Could You post Screenshots or the Output Tab, the Input Tab and the Configuration Tab from pavucontrol? Maybe You have to expand the Window a bit depending how much Devices are there.

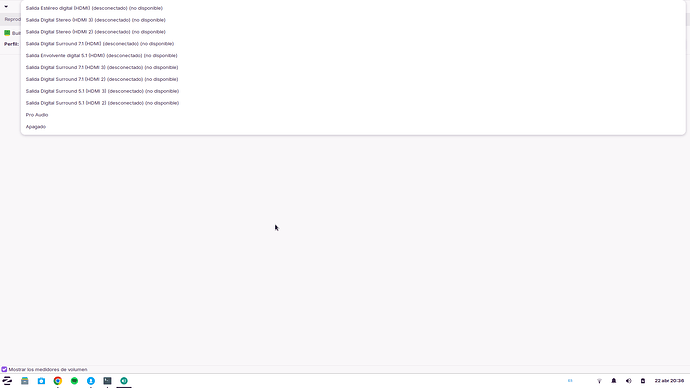

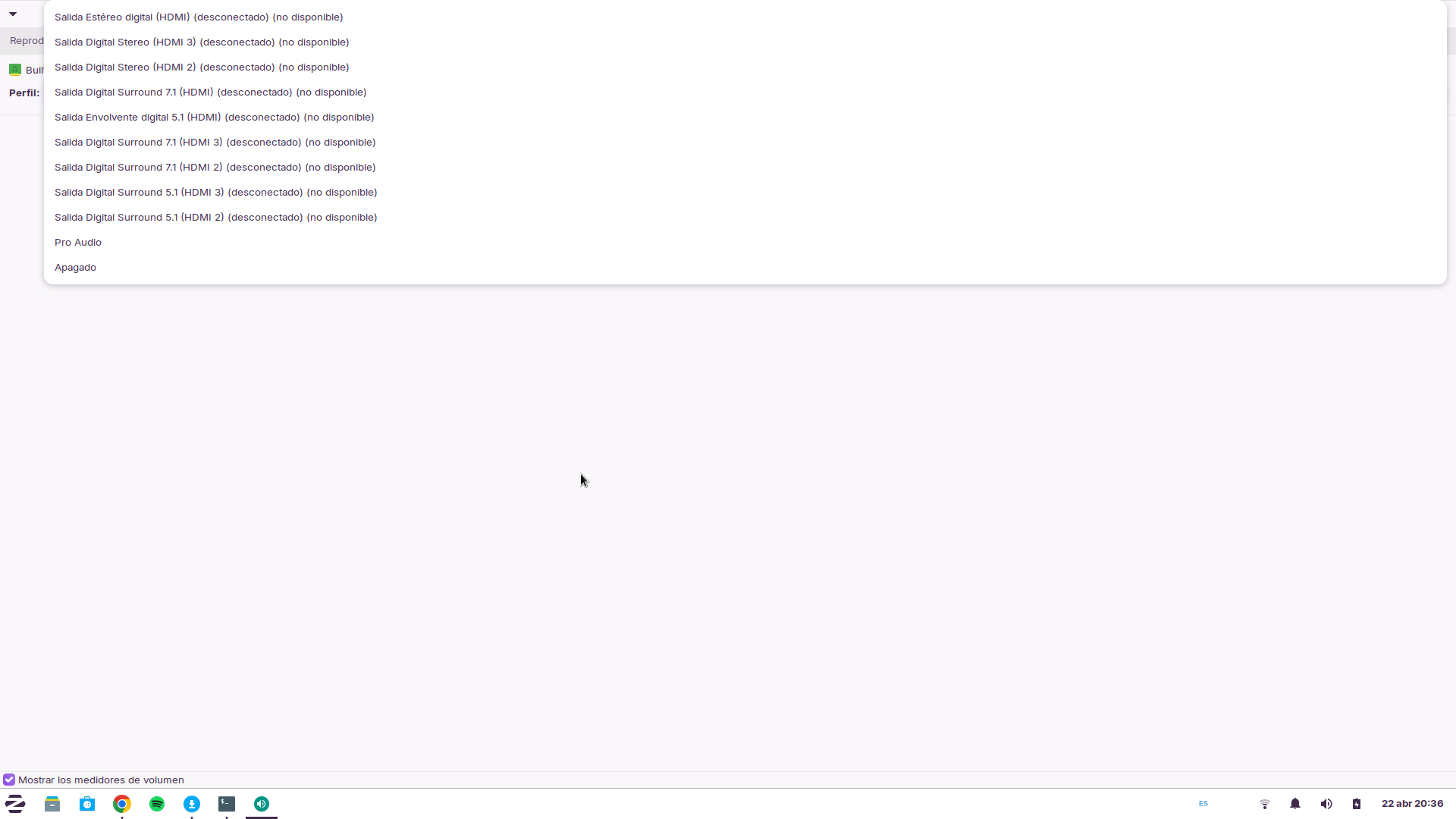

In the input and output tab says there not available and this is the configuration tab of pavucontrol

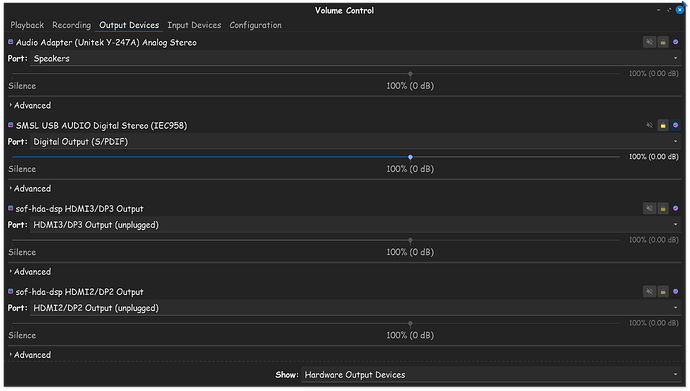

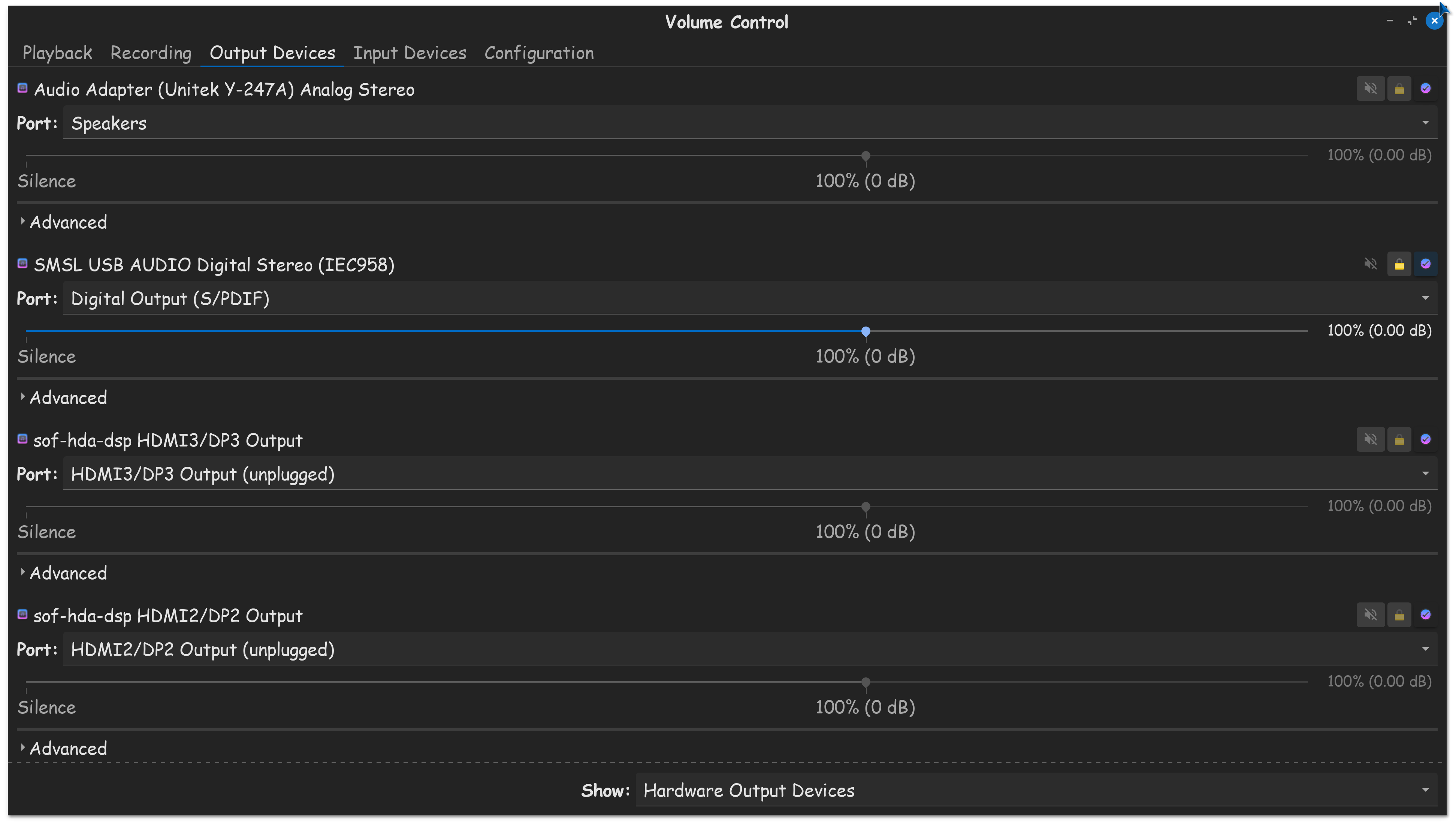

You might want to have a look at your Pulse Audio Volume Control GUI APP.
I used to use the HDMI output source for years, but then I changed my audio setup, and switched to using my external USB DAC.
What I did was, I muted all other output sources I'm not using, and left only the source I am using, unmuted. For reference, your source is muted when the speaker icon on the right is highlighted.
So my advice as follows...
(1) Make sure you see your output source in the list.
(2) Select your output source and set it to default.
(3) Make sure your output source is not muted.
Under Playback tab...
When a browser page, music player APP, or game is producing sound, it should be listed here. Make sure its un-muted, and the volume is up.
Regarding Input Devices tab...
If you are using microphones on your input line, make sure they are selected and defaulted to, and that they are not muted, and your volume is up.
Okay, when I understand it right only the last 2 Options are available as Setup. Did you tried to use these and check if it works?
1 Like
Yes, i tried but still doesn't work sadly. I gave up and delete Zorin lite, and tried installing Linux mint and the problem is the same. Internal speaker and mic only work or get detected in windows.
Hmm ... What Kernel do You have on Linux Mint? 6.11?
This persons guide seems to take it a bit further (This should apply on a base Ubuntu 22.04 like Zorin OS 17. If using Mint, check the version of its base. The later Mint may be based on Ubuntu 24.04):
in Linux mint I have Kernel 6.8.0-58-generic , should I update that or something?
I'm going to try this!!! ill be updating if it works! thanks sm!
It would be an Idea to try it with a newer Kernel. But You wrote that You use Linux Mint. Is it Linux Mint 22?
